Detailinformationen |
|||
| Hervorheben: | 4K Network Digital Video Recorder,16 Channel Digital Video Recorder |
||
|---|---|---|---|
Produkt-Beschreibung
| Model | JC-NVR-4K16CHSAI |
| System | |
| Operating System | Embedded LINUX |
| Max Preview Channel | 16CH |
| Video & Audio Input | |
| Incoming Bandwidth | 80Mbps |
| IPC Input | 4K/5MP/4MP/3MP/2MP/960P/720P |
| Video & Audio Decoding | |
| IP Channel Resolution | Main stream: up to 3840×2160 Auxiliary stream: D1/CIF |
| Video Compression | Smart H.265/H.265 /H.264 |
| Audio Decoding | G.711 |
| Preview/Playback | 8MP/5MP/4MP/3MP/1080p/960p/720p |
| Multi-screen Split | 1/2/4/6/8/9/10/16 screen real-time preview |
| Split Screen Decoding | 1(4K),4(4*1080P),6(4MP+5*D1),8(4MP+7*D1),9(9*D1), 16(16*D1) |
| Recording & Playback | |
| Recording Mode | Timing recording, Alarm recording, timing and alarm recording |
| Playback | 4CH (1*4K) NVR synchronous playback, |
| IMS client software support maximum 4CH remote video playback | |
| Playback Mode | Search by time, calendar, event, channel |
| Other Function | |
|
Smart Functions |
Human Detection, Line-Crossing Detection, Vehicle Retrograde Detection, Staff Absence Detection, Loitering, Area Intrusion,Vehicle Illegal Parking (need front end IPC supported) |
| Motion Detection | Support |
| Buzzer | Support buzzer alarm |
| PA System | Support |
| Storage & Backup | |
| SATA | 2*SATA HDD |
| Capacity | Max 2*16TB HDD |
| E-SATA | No |
| Backup Mode | Portable hard disk/USB Device |
| Network | |
| Network Protocols | TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181,etc. |
| ONVIF | Support |
| P2P | Support |
| APP | iPhone, Android |
| PC | Support |
| User Management | Maximum support 32 local user |
| Online Upgrade | Supports online NVR upgrade |
| IPC Upgrade | Support (specified model IPC) |
|
Other |
Support Channel Tour Round Grouping RTMP push |
| Interface | |
| Network Interface | 2pcs RJ45 10M/100M self-adaptive Ethernet interface |
| USB Interface | 3pcs USB2.0 Interfaces, Support mouse, USB upgrade, import and export |
|
Video Output |
VGA: 1CH,1920×1080,1280×1024,1280×720,1024×768 |
| HDMI:1CH,3840*2160, 1920×1080,1280×1024,1280×720,1024×768 | |
| Audio Output | Support 3.5mm Audio Input and output, HDMI audio output, support IMS client audio and video preview and playback. |
| Alarm | 4-channel switch alarm input,2-channel relay output for siren/alarm |
| RS485 | YES |
| General | |
| Installation | Desktop Installation |
| Power Supply | DC12V 3A |
| Consumption | ≤30W |
| Working Conditions | Temperature: -10℃- +55℃ Humidity: 10%∼90% |

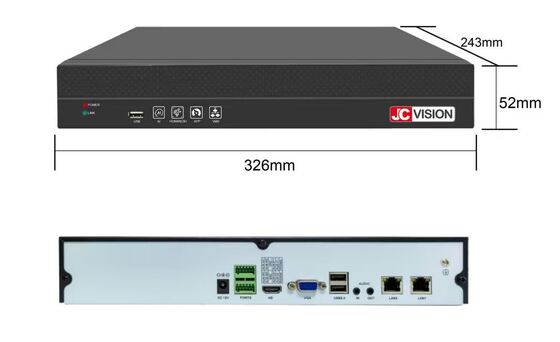

| Product Dimension | |
| Size (mm) | 326*243*52mm(W×D×H) |
