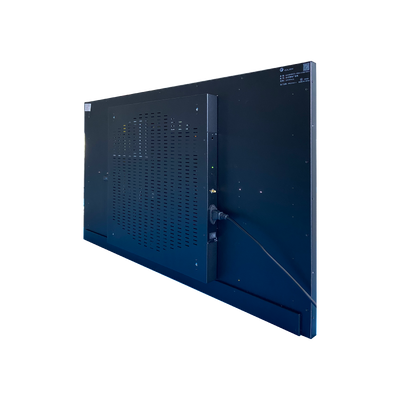

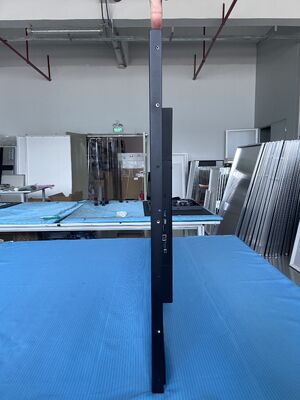

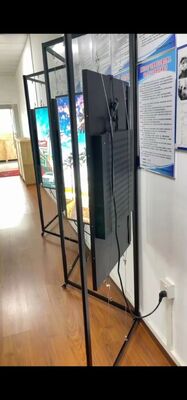

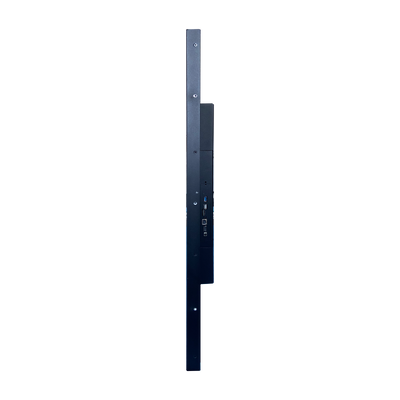

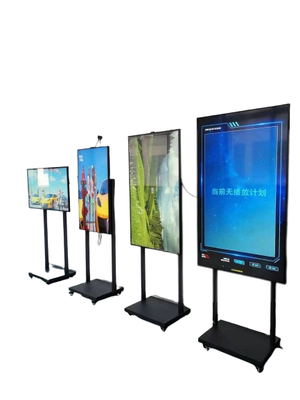

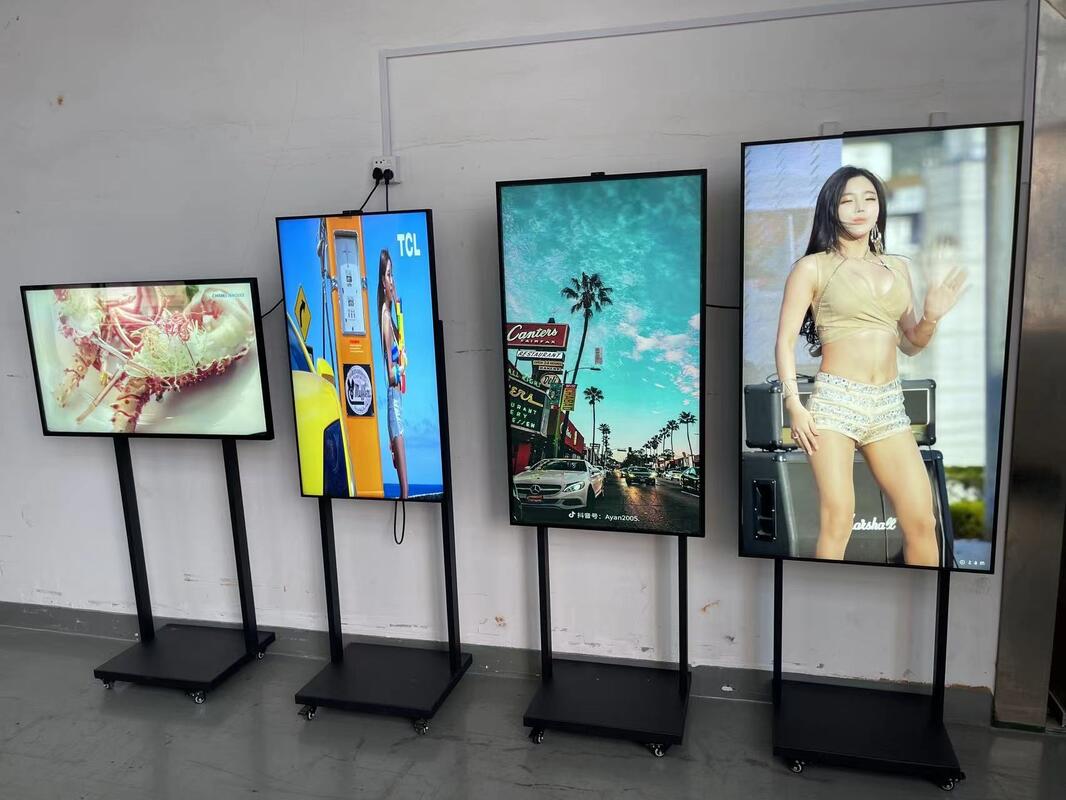

JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
Produktdetails:
| Herkunftsort: | China |
| Markenname: | JCVISION |
| Zertifizierung: | CE/ROHS |
| Dokumentieren: | JCVISION 43inch Semi-outdoo...) .pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Lieferzeit: | 10 Tage |
| Zahlungsbedingungen: | TT |
|
Detailinformationen |
|||
| Ansprechzeit: | 6 ms, 8 ms, 5 ms, 14 (typisch) (Tr+Td), 6,5 ms | Typ: | TFT, LCD-Display, Außenwerbung, LCD-Bildschirm, TV-Digital-Signage-Kiosk |
|---|---|---|---|
| Helligkeit: | 2000 cd/m2, 450 cd/m2, 2000 Nits, 1500/m2, 500 cd/m2 | Anwendung: | Draußen |
| Eingangsspannung: | AC100~240V 50/60 Hz, AC 110V~240V, 50/60Hz, 320W, AC100~240V 50-60 Hz | Betrachtungswinkel: | 178 /178,89/89/89/89,178°/178°,178 °V /178°H,89°/89°89°/89° (typisch) |
| Pixelabstand: | 0,4845 (H) x 0,4845 (V), 0,4845 mm, 0,831 (H) x 0,831 (V), 0,08275 x 0,24825, 0,0817 (H) x 0,2451 (V | Garantie: | 1 Jahr, ein Jahr, 2 Jahre, 3 Jahre, 12 Monate |
| Farbe: | 16,7 m, Schwarz/Silber/Weiß, oder optional, Farbe, Schwarz | Panelgröße: | 42 Zoll, kundenspezifisch, 55 Zoll, 65 Zoll, 230 x 105 x 35 mm |
| Maximale Auflösung: | 1920*1080,1920(RGB)*1080(FHD),1080P,3840*2160 | Produktname: | 55-Zoll-Digital-Signage-Werbedisplay mit hoher Helligkeit für den Außenbereich, 22-Zoll-PC-Computer |
| Kundendienst bereitgestellt: | Technischer Video-Support, Online-Support, kostenlose Ersatzteile, Installation vor Ort, Inbetriebna | CPU: | 2 GHz, A83T, Octa-Core, ARM A17 Quad 2,0 GHz, Dual-Core |
| Touch-Screen: | Mehrpunkt-Folienberührung, kapazitive 10-Punkt-/IR-Berührung, Folienberührung (optional), IR-Berühru | Material: | Metallgehäuse + gehärtete Glasscheibe, kaltgewalzter Stahl, Metallgehäuse + gehärtetes Glas, 1,2–1,5 |
| Installation: | bodenstehend, bodenstehend oder individuell angepasst | Größe: | 42 bis 65 Zoll, 65 Zoll, 65 Zoll (andere Größen verfügbar), 50 Zoll, 17 bis 84 Zoll optional |
| Betriebssystem: | Android 5.1, Android 4.4, X86 Windows7, CF/SD/USB, Android (Windows optional) | ||
| Hervorheben: | 43inch semi-outdoor digital signage display,high brightness outdoor display screen,double-sided outdoor digital signage |
||
Produkt-Beschreibung
JCVISION Technology Inc
43inch Semi-outdoor High brightness display
Features
u AppearanceAdopting an industrial-grade structural design concept, it features a one-piece molded frame, a slim and aesthetically pleasing body, simple installation and convenient maintenance, and a unique heat dissipation technology that supports 24/7 operation.
u High Definition: Utilizes an IPS high-definition LCD panel, featuring vibrant colors, high brightness, and supports up to 2160P video and image decoding playback, achieving high-quality image output.
u intelligent:Equipped with an intelligent input and display system, it features a wide range of mainstream ports, powerful audio and video decoding capabilities, automatic signal recognition, simple operation, and meets diverse usage needs.
u Scenarios: Supports horizontal/vertical installation, applicable to a wide range of scenarios, and is widely favored by government, education, finance, transportation, hotels, supermarkets, exhibition halls, medical, catering, and other industries.
u High-end: Combining numerous advantages such as aesthetics, high definition, explosion-proof, ease of use, commercial application, and intelligence, it is a high-end commercial display terminal device favored by many industries.
|
Trade Condition |
|
|||
|
Model No. |
JC-OW-S43A-NT |
|
||
|
Display parameters |
|
|||
|
LCD Grade |
New A+ LCD display panel |
|
||
|
Panel size |
43 inches |
|
||
|
resolution |
1920*1080 |
|
||
|
Viewing angle |
89/89/89/89 |
|
||
|
Display area |
940.896*529.254mm (H×V) |
|
||
|
Display ratio |
16:9 |
|
||
|
Backlight type |
E-LDE |
|
||
|
Screen brightness |
Single side 700nits/1000-3000NITS (option) Double side normally window side 2500 nits, indoor side 700 nits(potion) |
|
||
|
refresh rate |
60Hz |
|
||
|
Surface treatment |
Matte finish (Haze 1%) |
|
||
|
Supported colors |
16.7M (8-bit) |
|
||
|
Fuselage parameters |
|
|||
|
Available colors |
black |
|
||
|
Border material |
Aluminum profiles |
|
||
|
Body material |
Cold-rolled steel sheet for hardware (metal spraying) |
|
||
|
Border size |
5mm |
|
||
|
Body size |
953.5*544.5*59.5mm (excluding wall mount) |
|
||
|
Packaging size |
1080*150*677mm |
|
||
|
Wall mount bracket |
Horizontal/Vertical Universal Version |
|
||
|
Hanging hole spacing |
400*400 |
|
||
|
Packaging material |
Neutral thickened cardboard box |
|
||
|
net weight |
11.2KG |
|
||
|
Gross weight |
13.9KG |
|
||
|
Installation method |
Wall-mounted/Embedded/Hanging/Floor-mounted |
|
||
|
Display System (optional) |
|
|||
|
Motherboard |
Display Solution |
|
||
|
Support video |
MPEG1/MPEG2/MPEG4/AVI/VOB/MOV/WMV/DIVX/RM/RMVB, support super HD 2160P video |
|
||
|
Support picture |
JPG/JPEG/ PNG/BMP |
|
||
|
Timer |
Set time on/off auto |
|
||
|
Image rotate |
support 90°,180°,270° image rotate |
|
||
|
Android System (optional) |
|
|||
|
Motherboard |
RK3566/RK3576/RK3588 |
|
||
|
Operating system |
11.0/14.0/13.0 |
|
||
|
Main frequency |
1.8G HZ/2.2HZ/2.4HZ |
|
||
|
Memory |
2G/4G/8G (Optional) |
|
||
|
Storage |
32G/64G/128G(Optional) |
|
||
|
Input/output |
RJ45,HDMI out,USB*2,audio,TFcard, and option for HDMI IN |
|
||
|
Windows System (optional) |
|
|
||
|
Cpu |
I5 10th Gen/I5/I7 (optional) |
|
|
|
|
Operating system |
Win10/ Win11 |
|
|
|
|
Memory |
4G/8G/16G (Optional) |
|
|
|
|
Storage |
128/256G /512G/1T SSD (Optional) |
|
|
|
|
Input/output |
RJ45,HDMI out,USB2.0,USB3.0,audio |
|
|
|
|
System Functions |
|
|
||
|
Language selection |
Supports English, Chinese, and multiple languages. |
|
||
|
Video Decoding |
Highest support2160PVideo and image decoding and playback |
|
||
|
Power-on method |
Automatic start upon power-on, remote control on/off |
|
||
|
Signal recognition |
Automatically identify signal input source |
|
||
|
hibernation function |
Automatically enters sleep mode when no signal input. |
|
||
|
Idle animation |
Customizable standby screen |
|
||
|
Boot screen |
Customizable boot timeLOGO |
|
||
|
Remote control function |
Supports remote control operation |
|
||
|
USBFunction |
upgrade/Multimedia playback |
|
|
|
|
Audio function |
Built-in two high-quality tweeters |
|
|
|
|
screen rotation |
Follow the display orientation of the input host. |
|
|
|
|
Video support |
480P, 480p, 576P, 576p, 720p, 1080P, 1080p, 4Kx2K@60Hz |
|
|
|
|
Electrical performance |
|
|
||
|
Rated voltage |
AC110-220V |
|
|
|
|
standby power |
≤1W |
|
|
|
|
Rated power |
≦167W |
|
|
|
|
Operating temperature |
Temperature -20℃~70℃/humidity10%RH~90%RH |
|
|
|
|
Storage environment |
Temperature -20℃~70℃/humidity10%RH~90%RH |
|
|
|
|
Dimensions(Show separately) |
|
|
||
